To supplying radiation protection products to the highest quality available. All our radiation shielding products are designed to suit the needs of our customers with a cost efficient, effective solution of providing an radiation shield in a number of methods to protect staff and patients within a medical hospital, dentist, veterinary X-ray facility or at Nuclear plants.
We have a range of Radiation protection products on offer including Lead Sheet, Lead Linned Doors, Lead Partition, Lead Linned Drywall, Lead Glass, Lead Aprons, Lead Mobile/Portable Shielding and more...
Rayprotec Lead Sheet is consistent and high in density, manufactured from soft lead and a variety of special alloys upon request. Rayprotec Lead Sheet is free from dross, oxide inclusions, scale,laminations, blisters, and cracks. Every single Rayprotec lead sheet, is subjected to rigorous quality checks throughout the entire process from manufacture to despatch.
All lead used is subject to routine testing and checking. During production constant in process inspection is carried out to check for any pinholes or cracks cause during production.
Upon material ready, inspection for proper size & thickness is done for any possible quality issues and then each roll of RAYPROTEC Lead Sheet is wrapped with RAYPROTEC label thick HDPE Plastic sheet to avoid any kind of transit damages. Further our Product Colour Code labeling and marking helps your warehouse keeper/production floor people easily label out the required size. Each lot of RAYPROTEC Lead Sheet comes with IQC.
That's why we can say, with absolute confidence, that each and every one of our Rayprotec lead sheets is fit-for-purpose and made to an impeccable standard.
Rayprotec Lead Sheet is manufactured to a thickness tolerance that does not vary by more than +/- 5% throughtout the sheet.
Rolled lead sheet is formed by passing a slab of refined lead back and forth on a rolling mill between closing rollers, to a predetermined thickness. The sheet is then slit to width and cut to length for final packing and distribution. Such is the consistency of the process that lead sheet will not vary in thickness by more than +/- 5% at any given point.

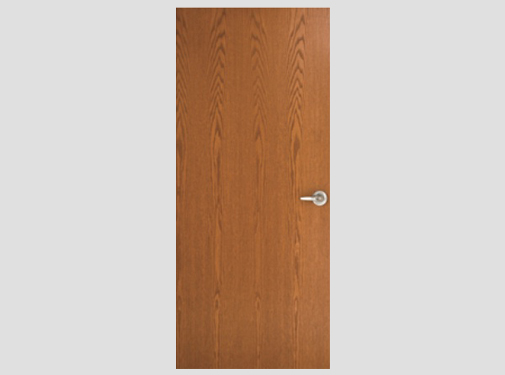

Rayprotec Lead Lined Doors consist of a single un-pierced lead sheet factory laminated between a divided solid core. The lead sheet extends the full height and width of the door. Rayprotec lead linned doors are designed and constructed with the highest quality craftsmanship and materials available.

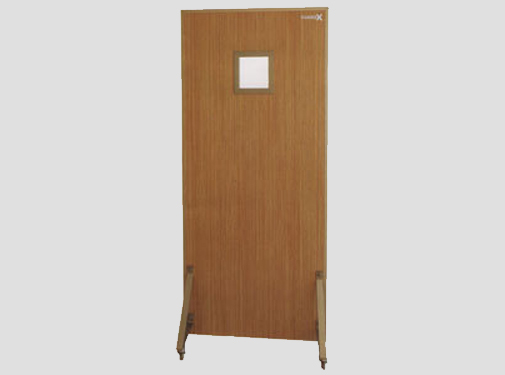

Rayprotec manufactures standard and custom-designed Radiation Shielding Mobile Lead Barriers. Rayprotec Mobile Lead Barrier are designed to shield medical personnel from harmful secondary radiation in examination rooms, operating rooms, intensive or cardiac care units, mammography, and nuclear medicine suites. The Mobile Lead Barriers are supplied with heavy duty non-marking swivel casters that are easily locked into position when required.
Rayprotec manufactures standard and custom-designed Radiation Shielding Portable Lead Shield. Rayprotec Portable Lead Shield is an excellent for patient protection during diagnostic procedures such as erect chest and cervical spine. Includes a durable nylon covered 0.5mm (1.0 mm optional) lead equivalency shield.

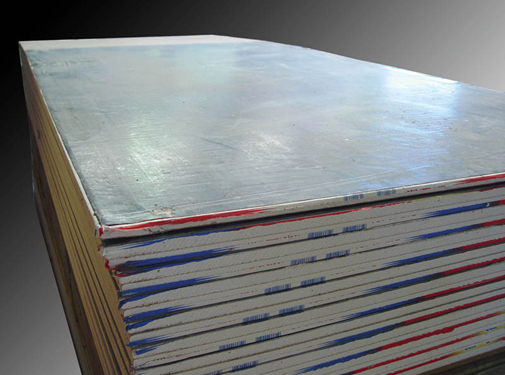

Rayprotec Lead Lined Drywall also referred to as lead lined gypsum board is supplied with lead lining bonded to 1/2" or 5/8" drywall.Rayprotec Lead Lined Drywall consists of a single unpierced sheet of lead laminated to the specified thickness of drywall. The bonding is accomplished with a continuous layer of mastic adhesive. We recommend using 5/8” drywall to support the extra weight of the lead. It is used in new construction or shielding upgrades/renovations for P.E.T and other types of diagnostic imaging rooms.

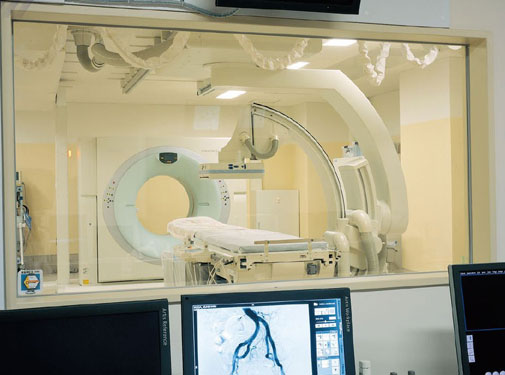

Rayprotec Lead Glass (X-ray Glass, Radiation Shielding Glass, Leaded Glass) is suitable for installation in screens, windows, walls, and doors. Our Lead Glass allows technicians to view the imaging or radiation therapy procedures.
Lead glass has a number of uses, primarily in the medical industry. It provides full radiation protection but is transparent and easy to see through for observation purposes. Our x-ray glass delivers superior visual clarity and high light transmission with little to no distortion, even in our thickest available varieties. Our lead glass can be used effectively in x-ray rooms, radiation therapy rooms, laboratories, and many other applications.
We offer lead glass in a variety of standard sizes to meet the needs of nearly any application. We also offer custom size lead glass up to a maximum of 1000mm x 2000mm. Quotes for leaded glass are available upon request.
Lead Glass is available in the following equivalencies: 1.6mm, 2.0mm, 2.5mm and 3.2mm. These lead equivalencies are based on 150kV. Lead x-ray glass with higher lead equivalencies is available upon request.
